Evaluation and Application of Kilovolt GaN-on-Sapphire Diode IC
Abstract

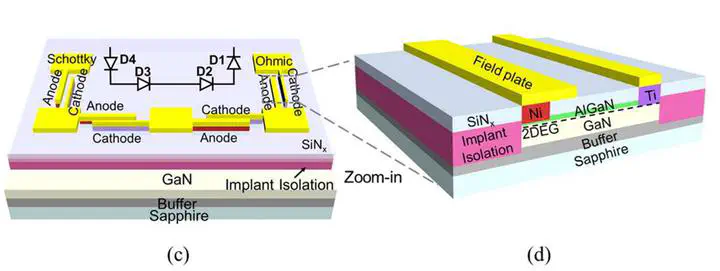

This work presents a comprehensive evaluation of a kilovolt-class monolithically integrated GaN-on-sapphire diode bridge IC designed for high-frequency, low-current, high-voltage power conversion. Building on our latest application of this IC in a 10 MHz, 1000 V Cockcroft-Walton voltage multiplier (CWVM), this study further studies the diode’s switching behaviors, the CWVM’s loss analysis, and the diode IC’s voltage scalability. Experimental double-pulse testing confirms the absence of reverse recovery charge, validating the unipolar nature of the device for megahertz operation. A detailed decomposition of the CWVM multiplication gain (Av) reveals that performance losses are primarily dominated by static forward voltage drops and load-dependent drops, while dynamic switching losses remain negligible due to the low-parasitic monolithic design. Furthermore, an investigation into the dynamic voltage blocking …
